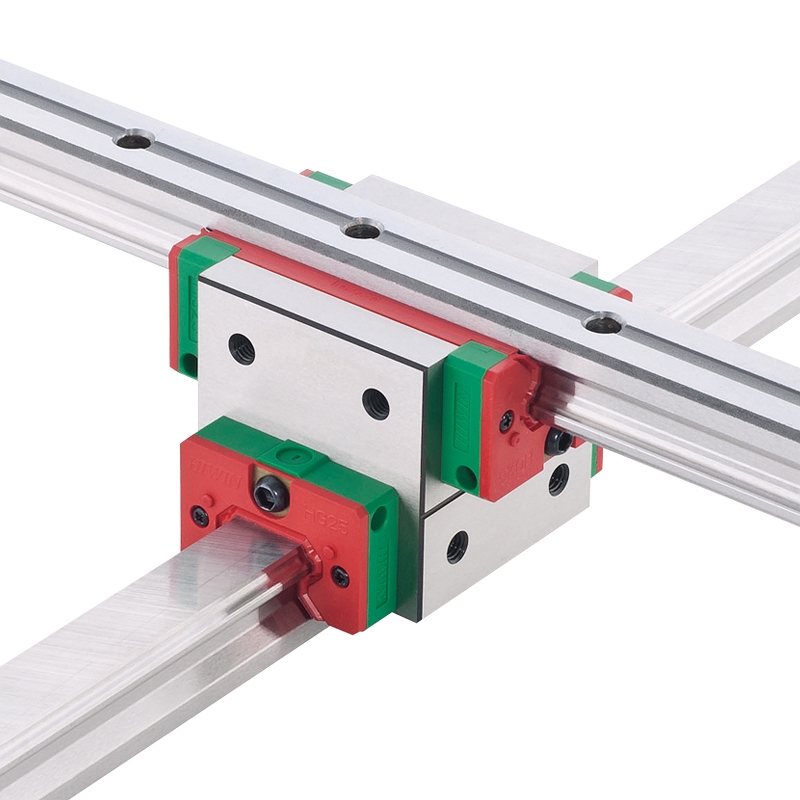

AG系列 交叉构型直线导轨

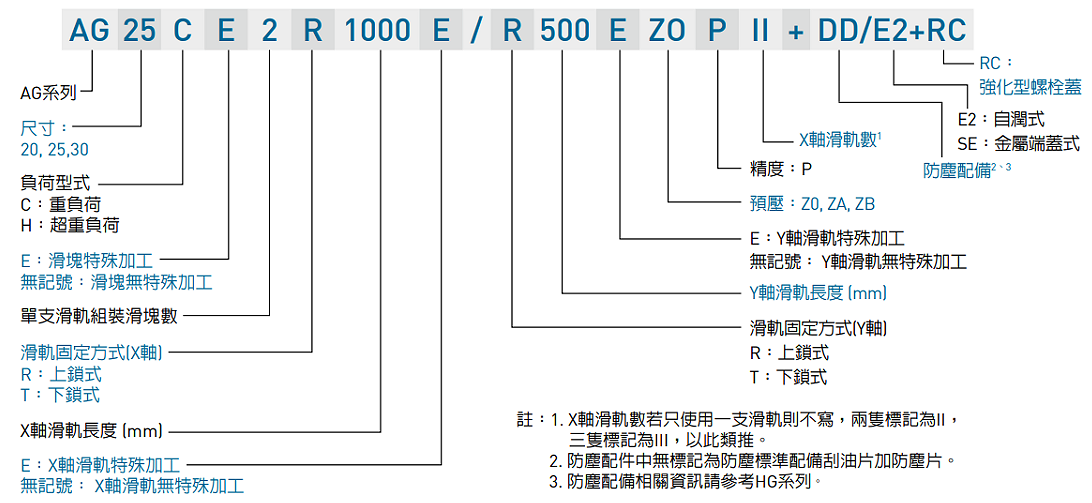

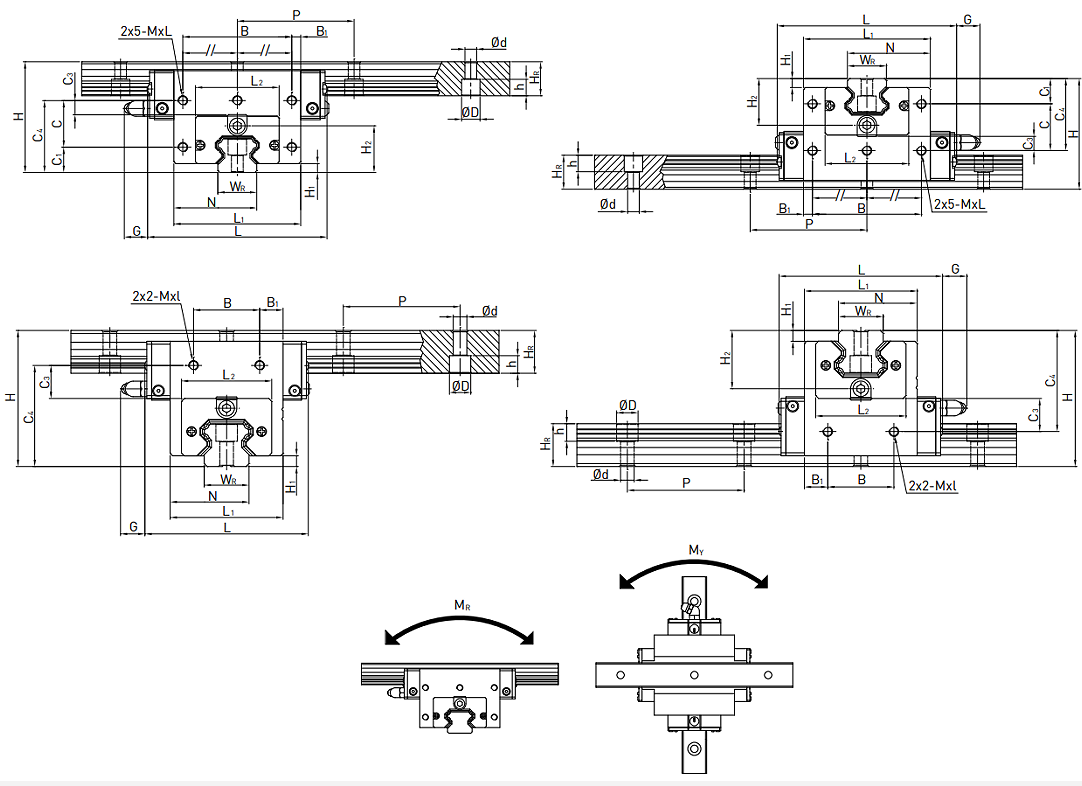

| 型号 | 组件尺寸(mm) | 滑块尺寸(mm) | 导轨尺寸(mm) | 基本动额定负荷 | 基本静额定负荷 | 容许静力矩 |
|---|
| H | H1 | N | L | L1 | L2 | K1 | K2 | B | B1 | C | C1 | C3 | C4 | Mxl | H2 | G | WR | HR | D | h | d | P | C(kN) | C0(kN) | MR(kN-m) | MY(kN-m) |
|---|
| AG20H | 57 | 4.6 | 42.6 | 92.2 | 65.2 | 43 | 5 | 6 | 56 | 4.6 | 24 | 13 | 7.2 | 37 | M5x8 | 24 | 12 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 32.7 | 47.96 | 0.35 | 0.35 |
| AG25C | 70 | 5.5 | 40.5 | 84 | 58 | 46.4 | 4.2 | 6 | 34 | 12 | - | - | 16.2 | 52 | M6x10 | 30 | 12 | 23 | 22 | 11 | 9 | 7 | 60 | 34.9 | 52.82 | 0.42 | 0.33 |
| AG25H | 70 | 5.5 | 50.8 | 104.6 | 78.6 | 46.4 | 4.2 | 6 | 64 | 7.3 | 26 | 18 | 8.2 | 44 | M6x10 | 30 | 12 | 23 | 22 | 11 | 9 | 7 | 60 | 42.2 | 69.07 | 0.56 | 0.57 |
| AG30C | 82 | 6 | 49 | 97.4 | 70 | 58 | 5.25 | 6 | 40 | 15 | - | - | 19.2 | 61 | M6x10 | 58 | 12 | 28 | 26 | 14 | 12 | 9 | 80 | 48.5 | 71.87 | 0.66 | 0.53 |
| AG30H | 82 | 6 | 60.5 | 120.4 | 93 | 58 | 5.25 | 6 | 76 | 8.5 | 32 | 21 | 11.2 | 53 | M6x10 | 58 | 12 | 28 | 26 | 14 | 12 | 9 | 80 | 58.6 | 93.99 | 0.88 | 0.92 |
