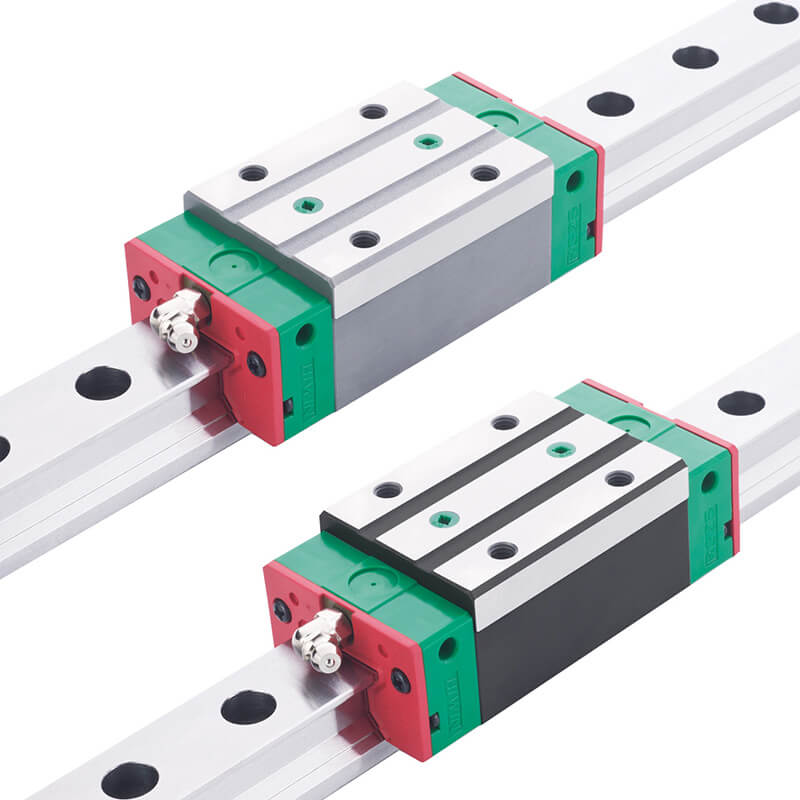

产品规格说明
QW系列分为非互换性及互换性型两种直线导轨，两者规格尺寸相同，主要差异点在于互换性型之滑块、滑轨可单独互换使用，较便利，但其组合精度无法达到非互换性型之超精密级以上的精度，不过由于HIWIN互换性型之组合精度目前已达到一定的水平，对不需配对安装直线导轨的客户而言，是一项便利的选择。直线导轨的产品规格型号主要标明直线导轨尺寸、型式、精度等级、预压等规格要求，以利订货时双方对产品的确认。QW系列与WE系列滑轨共享，客户无需为了选用静音式产品而重新设计安装尺寸，如此更加提升了QW系列的应用性与可互换性。

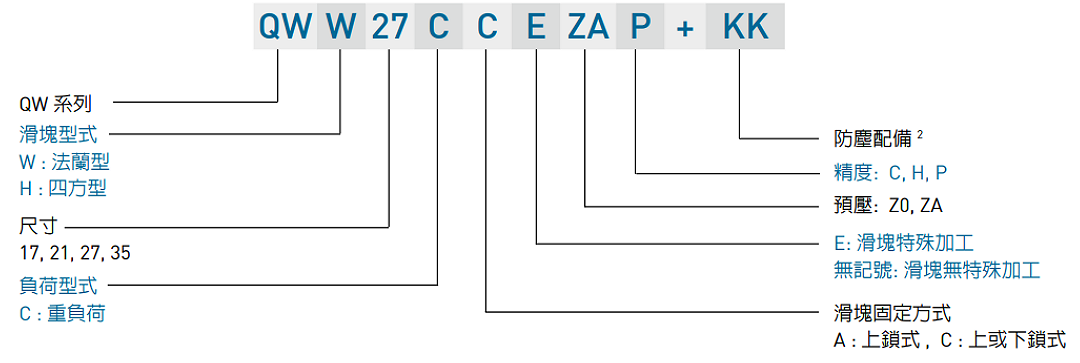

(1) 非互换性直线导轨产品型号
(2) 互换性直线导轨产品型号
互换型滑块产品型号

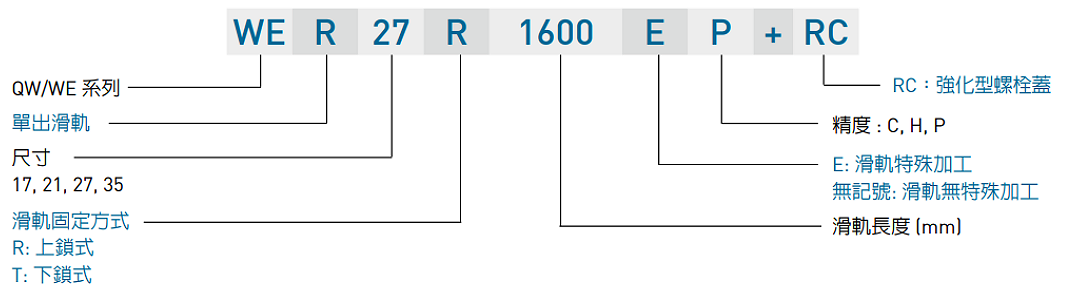

互换型滑轨产品型号
| 型号 | 组件尺寸(mm) | 滑块尺寸(mm) | 导轨尺寸(mm) | 导轨的固定螺栓尺寸 | 基本动额定负荷 | 基本静额定负荷 | 容许静力矩 | 重量 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | Mxl | T | H2 | H3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | C0(kN) | MR(kN-m) | MP(kN-m) | MY(kN-m) | 滑块(kg) | 导轨(kg/m) | |
| QRH20CA | 34 | 5 | 12 | 44 | 32 | 6 | 36 | 57.5 | 86 | 15.8 | 6 | 5.3 | M5x8 | 8 | 8.3 | 8.3 | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5x20 | 26.3 | 38.9 | 0.591 | 0.453 | 0.453 | 0.4 | 2.76 |
| QRH25CA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 66 | 97.9 | 21.5 | 7.25 | 12 | M6x8 | 9.5 | 10.2 | 10 | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6x20 | 38.5 | 54.4 | 0.722 | 0.627 | 0.627 | 0.6 | 3.08 |
| QRH25HA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 50 | 81 | 112.9 | 21.5 | 7.25 | 12 | M6x8 | 9.5 | 10.2 | 10 | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6x20 | 44.7 | 65.3 | 0.867 | 0.907 | 0.907 | 0.74 | 3.08 |
| QRH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 71 | 109.8 | 23.5 | 8 | 12 | M8x10 | 9.5 | 9.5 | 10.3 | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8x25 | 51.5 | 73 | 1.284 | 0.945 | 0.945 | 0.89 | 4.41 |
| QRH30HA | 45 | 6 | 16 | 60 | 40 | 10 | 60 | 93 | 131.8 | 24.5 | 8 | 12 | M8x10 | 9.5 | 9.5 | 10.3 | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8x25 | 64.7 | 95.8 | 1.685 | 1.63 | 1.63 | 1.15 | 4.41 |
| QRH35CA | 55 | 6.5 | 18 | 70 | 50 | 10 | 50 | 79 | 124 | 22.5 | 10 | 12 | M8x12 | 12 | 16 | 19.6 | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8x25 | 77 | 94.7 | 1.955 | 1.331 | 1.331 | 1.56 | 6.06 |
| QRH35HA | 55 | 6.5 | 18 | 70 | 50 | 10 | 72 | 106.5 | 151.5 | 25.25 | 10 | 12 | M8x12 | 12 | 16 | 19.6 | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8x25 | 95.7 | 126.3 | 2.606 | 2.335 | 2.335 | 2.04 | 6.06 |
| QRH45CA | 70 | 8 | 20.5 | 86 | 60 | 13 | 60 | 106 | 153.2 | 31 | 10 | 12.9 | M10x17 | 16 | 20 | 24 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12x35 | 123.2 | 156.4 | 3.959 | 2.666 | 2.666 | 3.16 | 9.97 |
| QRH45HA | 70 | 8 | 20.5 | 86 | 60 | 13 | 80 | 139.8 | 187 | 37.9 | 10 | 12.9 | M10x17 | 16 | 20 | 24 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12x35 | 150.8 | 208.6 | 5.718 | 5.086 | 5.086 | 4.1 | 9.97 |
| 型号 | 组件尺寸(mm) | 滑块尺寸(mm) | 导轨尺寸(mm) | 导轨的固定螺栓尺寸 | 基本动额定负荷 | 基本静额定负荷 | 容许静力矩 | 重量 | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | Mxl | T | H2 | H3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | C0(kN) | MR(kN-m) | MP(kN-m) | MY(kN-m) | 滑块(kg) | 导轨(kg/m) | |
| QRL20CA | 30 | 5 | 12 | 44 | 32 | 6 | 36 | 57.5 | 86 | 15.8 | 6 | 5.3 | M5x6 | 8 | 4.3 | 4.3 | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5x20 | 26.3 | 38.9 | 0.591 | 0.453 | 0.453 | 0.32 | 2.76 |
| QRL25CA | 36 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 66 | 97.9 | 21.5 | 7.25 | 12 | M6x8 | 9.5 | 6.2 | 6 | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6x20 | 38.5 | 54.4 | 0.722 | 0.627 | 0.627 | 0.5 | 3.08 |
| QRL25HA | 36 | 5.5 | 12.5 | 48 | 35 | 6.5 | 50 | 81 | 112.9 | 21.5 | 7.25 | 12 | M6x8 | 9.5 | 6.2 | 6 | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6x20 | 44.7 | 65.3 | 0.867 | 0.907 | 0.907 | 0.62 | 3.08 |
| QRL30CA | 42 | 6 | 16 | 60 | 40 | 10 | 40 | 71 | 109.8 | 23.5 | 8 | 12 | M8x10 | 9.5 | 6.5 | 7.3 | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8x25 | 51.5 | 73 | 1.284 | 0.945 | 0.945 | 0.79 | 4.41 |
| QRL30HA | 42 | 6 | 16 | 60 | 40 | 10 | 60 | 93 | 131.8 | 24.5 | 8 | 12 | M8x10 | 9.5 | 6.5 | 7.3 | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8x25 | 64.7 | 95.8 | 1.685 | 1.63 | 1.63 | 1.02 | 4.41 |
| QRL35CA | 48 | 6.5 | 18 | 70 | 50 | 10 | 50 | 79 | 124 | 22.5 | 10 | 12 | M8x12 | 12 | 9 | 12.6 | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8x25 | 77 | 94.7 | 1.955 | 1.331 | 1.331 | 1.26 | 6.06 |
| QRL35HA | 48 | 6.5 | 18 | 70 | 50 | 10 | 72 | 106.5 | 151.5 | 25.25 | 10 | 12 | M8x12 | 12 | 9 | 12.6 | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8x25 | 95.7 | 126.3 | 2.606 | 2.335 | 2.335 | 1.63 | 6.06 |
| QRL45CA | 60 | 8 | 20.5 | 86 | 60 | 13 | 60 | 106 | 153.2 | 31 | 10 | 12.9 | M10x17 | 16 | 10 | 14 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12x35 | 123.2 | 156.4 | 3.959 | 2.666 | 2.666 | 2.45 | 9.97 |
| QRL45HA | 60 | 8 | 20.5 | 86 | 60 | 13 | 80 | 139.8 | 187 | 37.9 | 10 | 12.9 | M10x17 | 16 | 10 | 14 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12x35 | 150.8 | 208.6 | 5.278 | 4.694 | 4.694 | 3.17 | 9.97 |
| 型号 | 组件尺寸(mm) | 滑块尺寸(mm) | 导轨尺寸(mm) | 导轨的固定螺栓尺寸 | 基本动额定负荷 | 基本静额定负荷 | 容许静力矩 | 重量 | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | H1 | N | W | B | B1 | C | C1 | L1 | L | K1 | K2 | G | M | T | T1 | H2 | H3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | C0(kN) | MR(kN-m) | MP(kN-m) | MY(kN-m) | 滑块(kg) | 导轨(kg/m) | |
| QRW20CC | 30 | 5 | 21.5 | 63 | 53 | 5 | 40 | 35 | 57.5 | 86 | 13.8 | 6 | 5.3 | M6 | 8 | 10 | 4.3 | 4.3 | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5x20 | 26.3 | 38.9 | 0.591 | 0.453 | 0.453 | 0.47 | 2.76 |
| QRW25CC | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 40 | 66 | 97.9 | 16.5 | 7.25 | 12 | M8 | 9.5 | 10 | 6.2 | 6 | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6x20 | 38.5 | 54.4 | 0.722 | 0.627 | 0.627 | 0.71 | 3.08 |
| QRW25HC | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 40 | 81 | 112.9 | 24 | 7.25 | 12 | M8 | 9.5 | 10 | 6.2 | 6 | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6x20 | 44.7 | 65.3 | 0.867 | 0.907 | 0.907 | 0.9 | 3.08 |
| QRW30CC | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 44 | 71 | 109.8 | 17.5 | 8 | 12 | M10 | 9.5 | 10 | 6.5 | 7.3 | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8x25 | 51.5 | 73 | 1.284 | 0.945 | 0.945 | 1.15 | 4.41 |
| QRW30HC | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 44 | 93 | 131.8 | 28.5 | 8 | 12 | M10 | 9.5 | 10 | 6.5 | 7.3 | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8x25 | 64.7 | 95.8 | 1.685 | 1.63 | 1.63 | 1.51 | 4.41 |
| QRW35CC | 48 | 6.5 | 33 | 100 | 82 | 9 | 62 | 52 | 79 | 124 | 16.5 | 10 | 12 | M10 | 12 | 13 | 9 | 12.6 | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8x25 | 77 | 94.7 | 1.955 | 1.331 | 1.331 | 1.74 | 6.06 |
| QRW35HC | 48 | 6.5 | 33 | 100 | 82 | 9 | 62 | 52 | 106.5 | 151.5 | 30.25 | 10 | 12 | M10 | 12 | 13 | 9 | 12.6 | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8x25 | 95.7 | 126.3 | 2.606 | 2.335 | 2.335 | 2.38 | 6.06 |
| QRW45CC | 60 | 8 | 37.5 | 120 | 100 | 10 | 80 | 60 | 106 | 153.2 | 21 | 10 | 12.9 | M12 | 14 | 15 | 10 | 14 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12x35 | 123.2 | 156.4 | 3.959 | 2.666 | 2.666 | 3.41 | 9.97 |
| QRW45HC | 60 | 8 | 37.5 | 120 | 100 | 10 | 80 | 60 | 139.8 | 187 | 37.9 | 10 | 12.9 | M12 | 14 | 15 | 10 | 14 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | ||||||||
