产品规格说明
QW系列分为非互换性及互换性型两种直线导轨，两者规格尺寸相同，主要差异点在于互换性型之滑块、滑轨可单独互换使用，较便利，但其组合精度无法达到非互换性型之超精密级以上的精度，不过由于HIWIN互换性型之组合精度目前已达到一定的水平，对不需配对安装直线导轨的客户而言，是一项便利的选择。直线导轨的产品规格型号主要标明直线导轨尺寸、型式、精度等级、预压等规格要求，以利订货时双方对产品的确认。QW系列与WE系列滑轨共享，客户无需为了选用静音式产品而重新设计安装尺寸，如此更加提升了QW系列的应用性与可互换性。
(1) 非互换性直线导轨产品型号
(2) 互换性直线导轨产品型号
互换型滑块产品型号
互换型滑轨产品型号

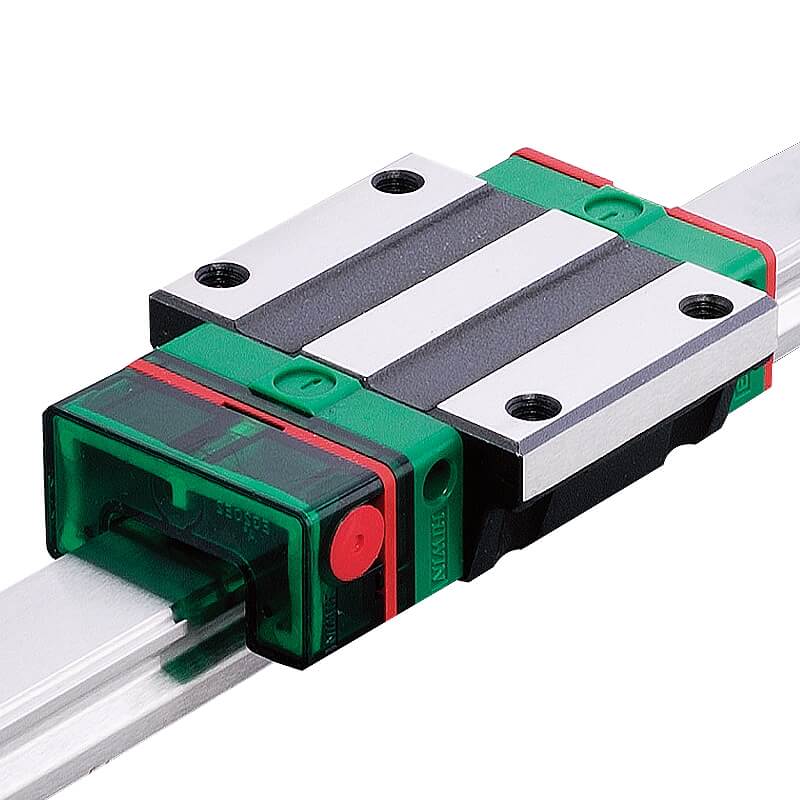

| 型号 | E2自润模块尺寸 | |||||||
|---|---|---|---|---|---|---|---|---|
| W | H | T | V | L | ||||
| SS | ZZ | DD | KK | |||||
| HG15C | 32.4 | 19.5 | 12.5 | 3 | 75.4 (75.6) | 82.5 (82.7) | 82.0 (82.2) | 89.1 (89.3) |
| HG20C | 43 | 24.4 | 13.5 | 3.5 | 93.5 (94.4) | 97.5 (98.5) | 98.5 (99.4) | 102.5 (103.5) |
| HG20H | 43 | 24.4 | 13.5 | 3.5 | 108.2 (109.1) | 112.2 (113.2) | 113.2 (114.1) | 117.2 (118.2) |
| HG25C | 46.4 | 29.5 | 13.5 | 3.5 | 100.0 (100.5) | 104.0 (105.0) | 105.0 (105.5) | 109.0 (110.0) |
| HG25H | 46.4 | 29.5 | 13.5 | 3.5 | 120.6 (121.1) | 124.6 (125.6) | 125.6 (126.1) | 129.6 (130.6) |
| HG30C | 58 | 35 | 13.5 | 3.5 | 112.9 (113.9) | 120.4 (121.4) | 120.3 (121.3) | 127.8 (128.8) |
| HG30H | 58 | 35 | 13.5 | 3.5 | 135.9 (136.9) | 143.4 (144.4) | 143.3 (144.3) | 150.8 (151.8) |
| HG35C | 68 | 38.5 | 13.5 | 3.5 | 127.9 (128.9) | 135.4 (136.4) | 135.3 (136.3) | 142.8 (143.8) |
| HG35H | 68 | 38.5 | 13.5 | 3.5 | 153.7 (154.7) | 161.2 (162.2) | 161.1 (162.1) | 168.6 (169.6) |
| HG45C | 82 | 49 | 16 | 4.5 | 157.2 (157.2) | 166.5 (166.5) | 167.2 (167.2) | 176.5 (176.5) |
| HG45H | 82 | 49 | 16 | 4.5 | 189.0 (189.0) | 198.3 (198.3) | 199.0 (199.0) | 208.3 (208.3) |
| HG55C | 97 | 55.5 | 16 | 4.5 | 183.9 (183.9) | 193.6 (193.6) | 194.3 (194.3) | 204.0 (204.0) |
| HG55H | 97 | 55.5 | 16 | 4.5 | 222.0 (222.0) | 231.7 (231.7) | 232.4 (232.4) | 242.1 (242.1) |
| HG65C | 121 | 69 | 16 | 4.5 | 219.2 (219.2) | 224.7 (224.7) | 228.2 (228.2) | 233.7 (233.7) |
| HG65H | 121 | 69 | 16 | 4.5 | 278.6 (278.6) | 284.1 (284.1) | 287.6 (287.6) | 293.1 (293.1) |
| 型号 | E2自润模块尺寸 | |||||||
|---|---|---|---|---|---|---|---|---|
| W | H | T | V | L | ||||
| SS | ZZ | DD | KK | |||||
| EG15S | 33.3 | 18.7 | 11.5 | 3 | 54.6 (55.8) | 56.2 (58.4) | 58.6 (59.8) | 60.2 (62.4) |
| EG15C | 33.3 | 18.7 | 11.5 | 3 | 71.3 (72.5 ) | 72.9 (75.1) | 75.3 (76.5) | 76.9 (79.1) |
| EG20S | 41.3 | 20.9 | 13 | 3 | 66.0 (68.0) | 67.6 (70.6) | 70.0 (72.0) | 71.6 (74.6) |
| EG20C | 41.3 | 20.9 | 13 | 3 | 85.1 (87.1) | 86.7 (89.7) | 89.1 (91.1) | 90.7 (93.7) |
| EG25S | 47.3 | 24.9 | 13 | 3 | 75.1 (77.1) | 77.1 (80.1) | 79.1 (81.1) | 81.1 (84.1) |
| EG25C | 47.3 | 24.9 | 13 | 3 | 98.6 (100.6) | 100.6 (103.6) | 102.6 (104.6) | 104.6 (107.6) |
| EG30S | 59.3 | 31 | 13 | 3 | 85.5 (87.5) | 87.5 (90.5 ) | 89.5 (91.5) | 91.5 (94.5) |
| EG30C | 59.3 | 31 | 13 | 3 | 114.1 (116.1) | 116.1 (119.1) | 118.1 (120.1) | 120.1 (123.1) |
| EG35S | 68 | 33.5 | 13 | 3 | 91.0 (93.0) | 94.0 (97.0) | 95.0 (97.0) | 98.0 (101.0) |
| EG35C | 68 | 33.5 | 13 | 3 | 124.0 (126.0) | 127.0 (130.0) | 128.0 (130.0) | 131.0 (134.0) |
| 型号 | E2自润模块尺寸 | |||||||
|---|---|---|---|---|---|---|---|---|
| W | H | T | V | L | ||||
| SS | ZZ | DD | KK | |||||
| RG15C | 33 | 19.2 | 12.5 | 3.5 | 84.0 (85.2) | 86.0 (88.2) | 88.4 (89.6) | 90.4 (92.6) |
| RG20C | 43.4 | 24.2 | 12.5 | 3.5 | 102 (103.2) | 104.0 (106.2) | 106.4 (107.6) | 108.4 (110.6) |
| RG20H | 43.4 | 24.2 | 12.5 | 3.5 | 122 (123.2) | 124.0 (126.2) | 126.4 (127.6) | 128.4 (130.6) |
| RG25C | 46.8 | 29.2 | 13.5 | 3.5 | 114.9 (116.7) | 116.9 (119.9) | 119.3 (121.1) | 121.3 (124.3) |
| RG25H | 46.8 | 29.2 | 13.5 | 3.5 | 131.4 (133.2) | 133.4 (136.4) | 135.8 (137.6) | 137.8 (140.8) |
| RG30C | 58.8 | 34.9 | 13.5 | 3.5 | 126.8 (128.6) | 129.8 (132.8) | 131.6 (133.4) | 134.6 (137.6) |
| RG30H | 58.8 | 34.9 | 13.5 | 3.5 | 148.8 (150.6) | 151.8 (154.8) | 153.6 (155.4) | 156.6 (159.6) |
| RG35C | 68.8 | 40.3 | 13.5 | 3.5 | 141 (143.7) | 144.0 (148.0) | 146.0 (148.7) | 149.0 (153.0) |
| RG35H | 68.8 | 40.3 | 13.5 | 3.5 | 168.5 (171.2) | 171.5 (175.5) | 173.5 (176.2) | 176.5 (180.5) |
| RG45C | 83.8 | 50.2 | 16 | 4.5 | 173.7 (175.3) | 176.7 (180.7) | 180.9 (182.5) | 183.9 (187.9) |
| RG45H | 83.8 | 50.2 | 16 | 4.5 | 207.5 (209.1) | 210.5 (214.5) | 214.7 (216.3) | 217.7 (221.7) |
| RG55C | 97.6 | 58.4 | 16 | 4.5 | 204.2 (205.8) | 207.2 (211.2) | 211.4 (213) | 214.4 (218.4) |
| RG55H | 97.6 | 58.4 | 16 | 4.5 | 252.5 (254.1) | 255.5 (259.5) | 259.7 (261.3) | 262.7 (266.7) |
| RG65C | 121.7 | 76.1 | 16 | 4.5 | 252.5 (254.5) | 255.5 (260.5) | 261.3 (263.3) | 264.3 (269.3) |
| RG65H | 121.7 | 76.1 | 16 | 4.5 | 315.5 (317.5) | 318.5 (323.5) | 324.3 (326.3) | 327.3 (332.3) |
| 型号 | E2自润模块尺寸 | |||||||
|---|---|---|---|---|---|---|---|---|
| W | H | T | V | L | ||||
| SS | ZZ | DD | KK | |||||
| QH15C | 32.4 | 19.5 | 12.5 | 3 | 75.4 (75.6) | 82.2 (82.7) | 82.0 (82.2) | 88.8 (89.3) |
| QH20C | 43 | 24.4 | 13.5 | 3.5 | 93.1 (94.2) | 97.2 (98.5) | 98.1 (99.2) | 102.2 (103.5) |
| QH20H | 43 | 24.4 | 13.5 | 3.5 | 107.8 (108.9) | 111.9 (113.2) | 112.8 (113.9) | 116.9 (118.2) |
| QH25C | 46.4 | 29.5 | 13.5 | 3.5 | 100.2 (101.5) | 104.7 (106.0) | 105.2 (106.5) | 109.7 (111.0) |
| QH25H | 46.4 | 29.5 | 13.5 | 3.5 | 120.8 (122.1) | 125.3 (126.6) | 125.8 (127.1) | 130.3 (131.6) |
| QH30C | 58 | 35 | 13.5 | 3.5 | 112.9 (113.9) | 120.1 (121.4) | 120.3 (121.3) | 127.5 (128.8) |
| QH30H | 58 | 35 | 13.5 | 3.5 | 135.9 (136.9) | 143.1 (144.4) | 143.3 (144.3) | 150.5 (151.8) |
| QH35C | 68 | 38.5 | 16 | 3.5 | 129.3 (129.7) | 133.5 (134.0) | 134.3 (134.7) | 138.5 (139.0) |
| QH35H | 68 | 38.5 | 16 | 3.5 | 155.1 (155.5) | 159.3 (159.8) | 160.1 (160.5) | 164.3 (164.8) |
| QH45C | 82 | 49 | 16 | 4.5 | 158.3 (158.3) | 163.7 (163.7) | 165.5 (165.5) | 170.9 (170.9) |
| QH45H | 82 | 49 | 16 | 4.5 | 190.1 (190.1) | 195.5 (195.5) | 197.3 (197.3) | 202.7 (202.7) |
| 型号 | E2自润模块尺寸 | |||||||
|---|---|---|---|---|---|---|---|---|
| W | H | T | V | L | ||||
| SS | ZZ | DD | KK | |||||
| QR 20C | 43.4 | 24.2 | 12.5 | 3.5 | 102.0 (103.2) | 104.0 (106.2) | 106.4 (107.6) | 108.4 (110.6) |
| QR25C | 46.8 | 29.2 | 13.5 | 3.5 | 114.9 (116.7) | 116.9 (119.9) | 119.3 (121.1) | 121.3 (124.3) |
| QR25H | 46.8 | 29.2 | 13.5 | 3.5 | 129.9 (131.7) | 131.9 (134.9) | 134.3 (136.1) | 136.3 (139.3) |
| QR30C | 58.8 | 34.9 | 13.5 | 3.5 | 126.8 (128.6) | 129.8 (132.8) | 131.6 (133.4) | 134.6 (137.6) |
| QR30H | 58.8 | 34.9 | 13.5 | 3.5 | 148.8 (150.6) | 151.5 (154.8) | 153.6 (155.4) | 156.6 (159.6) |
| QR35C | 68.8 | 40.3 | 13.5 | 3.5 | 141.0 (143.7) | 144.0 (148.0) | 146.0 (148.7) | 149.0 (153.0) |
| QR35H | 68.8 | 40.3 | 13.5 | 3.5 | 168.5 (171.2) | 171.5 (175.5) | 173.5 (176.2) | 176.5 (180.5) |
| QR45C | 83.8 | 50.2 | 16 | 4.5 | 173.7 (175.3) | 176.7 (180.7) | 180.9 (182.5) | 183.9 (187.9) |
| QR45H | 83.8 | 50.2 | 16 | 4.5 | 207.5 (209.1) | 210.5 (214.5) | 214.7 (216.3) | 217.7 (221.7) |
| 型号 | E2自润模块尺寸 | |||||||
|---|---|---|---|---|---|---|---|---|
| W | H | T | V | L | ||||
| SS | ZZ | DD | KK | |||||
| QE15S | 33.3 | 19.2 | 11.5 | 3 | 54.6(56.0) | 56.6(58.8) | 58.6(60.0) | 60.5(62.8) |
| QE15C | 33.3 | 19.2 | 11.5 | 3 | 71.3(72.7) | 73.3(75.5) | 75.3(76.7) | 77.3(79.5) |
| QE20S | 41.3 | 20.9 | 13 | 3 | 66.0(68.0) | 68.0(71.0) | 70.0(72.0) | 72.0(75.0) |
| QE20C | 41.3 | 20.9 | 13 | 3 | 85.1(87.1) | 87.1(90.1) | 89.1(91.1) | 91.1(94.1) |
| QE25S | 47.3 | 24.9 | 13 | 3 | 76.1(77.8) | 78.1(81.1) | 81.1(82.8) | 83.1(86.1) |
| QE25C | 47.3 | 24.9 | 13 | 3 | 99.6(101.3) | 101.6(104.6) | 104.6(106.3) | 106.6(109.6) |
| QE30S | 59.3 | 31 | 13 | 3 | 83.5(85.4) | 85.5(88.5) | 88.5(90.4) | 90.5(93.5) |
| QE30C | 59.3 | 31 | 13 | 3 | 112.1(114.0) | 114.1(117.1) | 117.1(119.0) | 119.1(122.1) |
| QE35S | 68 | 35.5 | 13 | 3 | 92.0(94.0) | 95.0(98.0) | 96.0(98.0) | 99.0(102.0) |
| QE35C | 68 | 35.5 | 13 | 3 | 124.0(126.0) | 127.0(130) | 128.0(130.0) | 131.0(134.0) |
